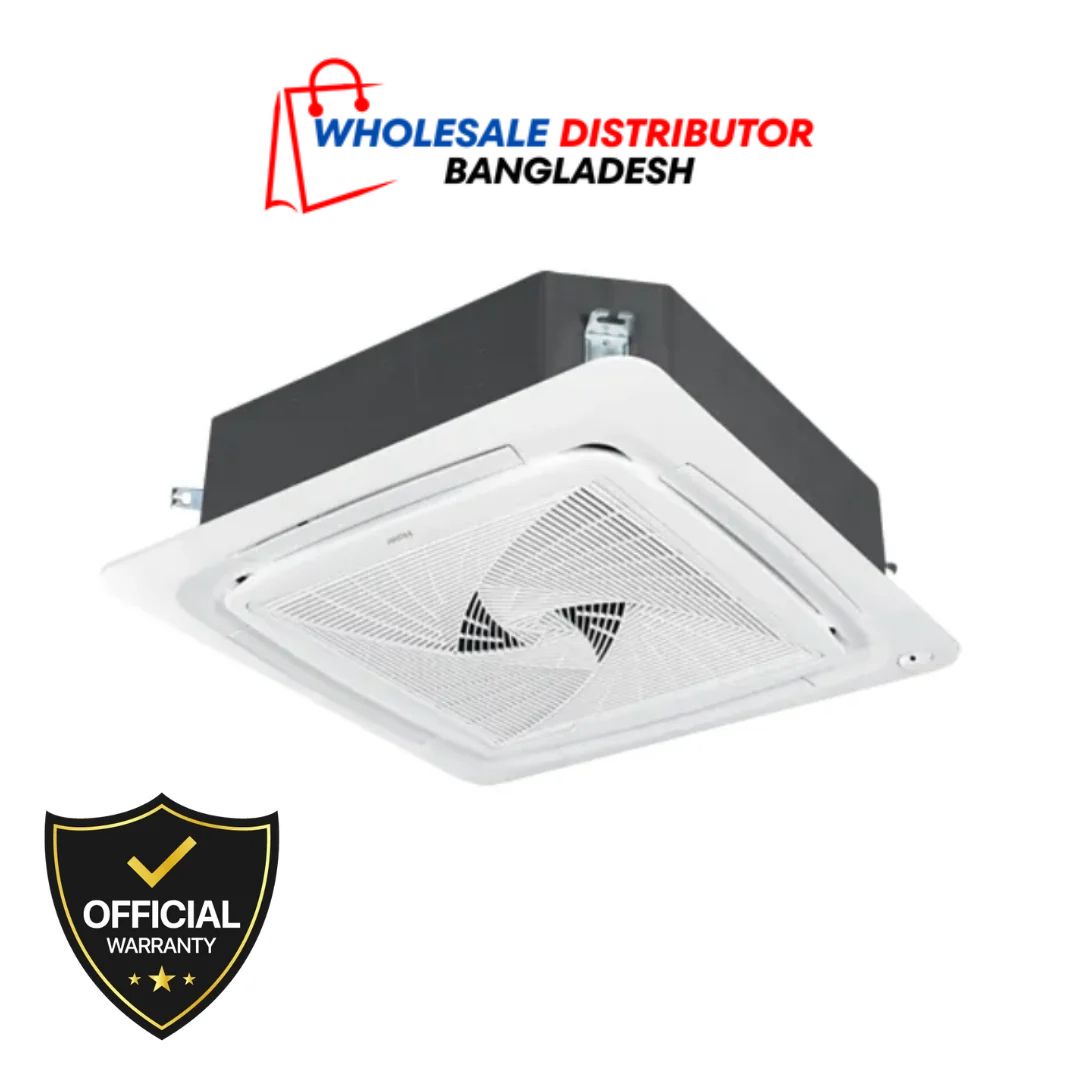

Haier 3 Ton Fixed Speed Cassette Type -LCAC Air Conditioner (HSU-36CassetteType)

Model Specification

HBL Model Name: HSU-36CassetteType:(Fix)
IDU Code: AB105S1SR1FA
ODU Code: 1U105S1LN1SB
Panel Code: PB-950QB

Capacity

Cooling (BTU/h): 36000
Heating (BTU/h): Not Applicable
Power Input
Cooling (W): 3300
Heating (W): Not Applicable
Energy Class
EER: 3.18

Running Current

Cooling (A): 5.32
Heating (A): Not Applicable
Power Supply
(Ph, V, Hz): 3/380~415/50

Air Flow

H/M/L/So (m3/h): 2080/1780/1580/1400
Moisture Removal Capacity
(10-3m3/h): 2L/H
Refrigerant Type
Refrigerant Type: R32
Refrigerant Pipe
Liquid Side Diameter (mm): 9.52
Gas Side Diameter (mm): 15.88

Indoor

Net Dimension (mm) W/D/H: 840/840/246
Package Dimension (mm) W/D/H: 978/978/312
Net Weight (kg): 25
Gross Weight (kg): 30.5
Sound power Level [dB(A)] Hi/Mid/Lo: 53/50/47/43

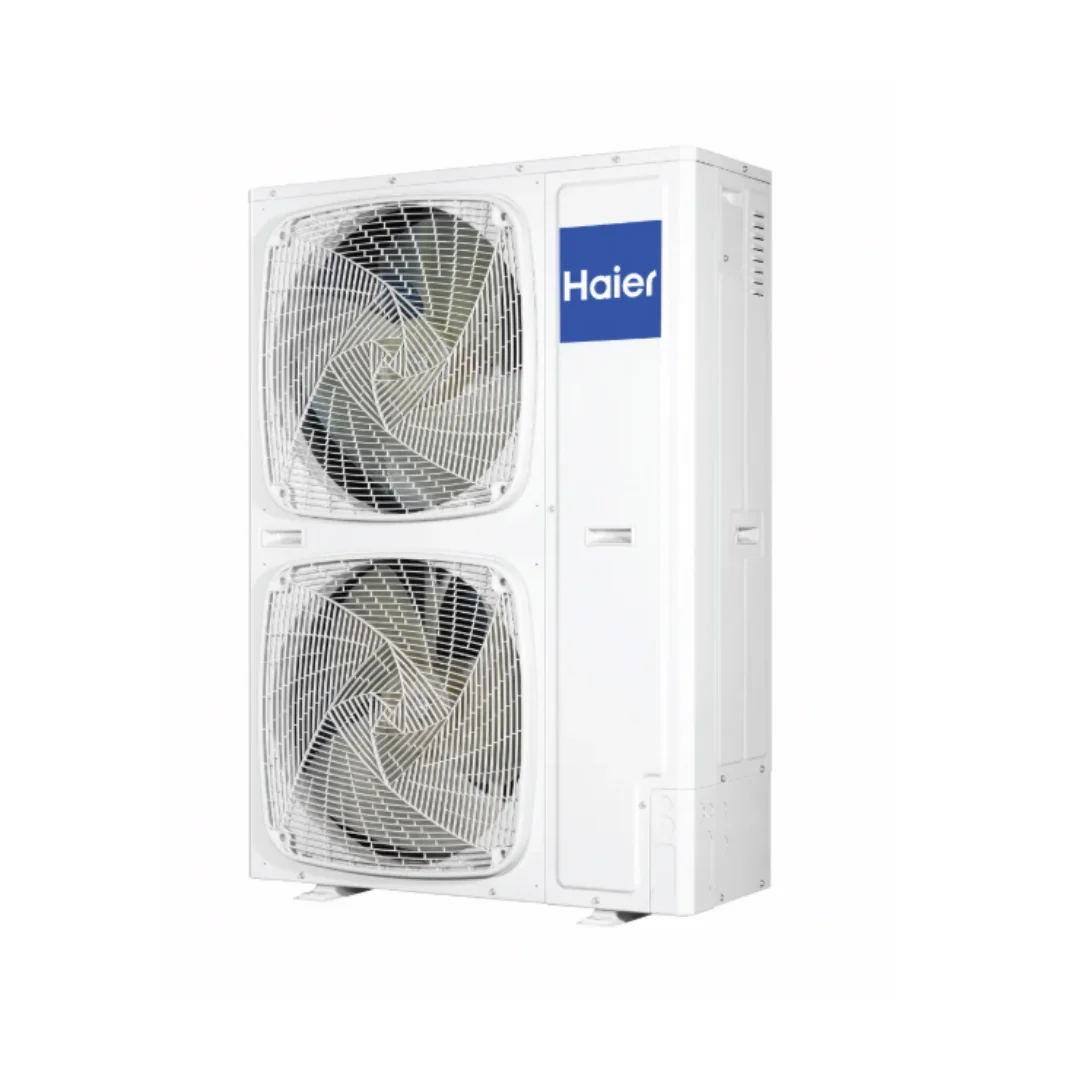

Outdoor

Net Dimension (mm) W/D/H: 950/370/965
Package Dimension (mm) W/D/H: 1050/485/1095
Net Weight (kg): 74
Gross Weight (kg): 85
Sound Power Level [dB(A)] Hi/Mid/Lo/So: 59
Compressor Type: Rotary

Panel

Model: PB-950QB
External Dimensions (W/D/H) mm: 950/950/50
Packing Dimensions (W/D/H) mm: 1000/1000/110
Net Weight (KG): 5.5
Gross Weight (KG): 8.5

Special Features

DC Fan Motor: Yes
Large Heat Exchanger Design: Yes
Multiple Air Speed for Ultimate Comfort: Yes
Hidden LED Display: Yes
Automatic Airflow Control: Yes
Installation Friendly: Yes
Convenient Filters: Yes
Energy Saving: Yes
Super Big Inlet Grille: Yes
Brand New Designed Fan: Yes
Individual Flap Control: Yes
High Ceiling Mode: Yes
Round Way Air Supply: Yes
High Lift-up Drain Pump: Yes
